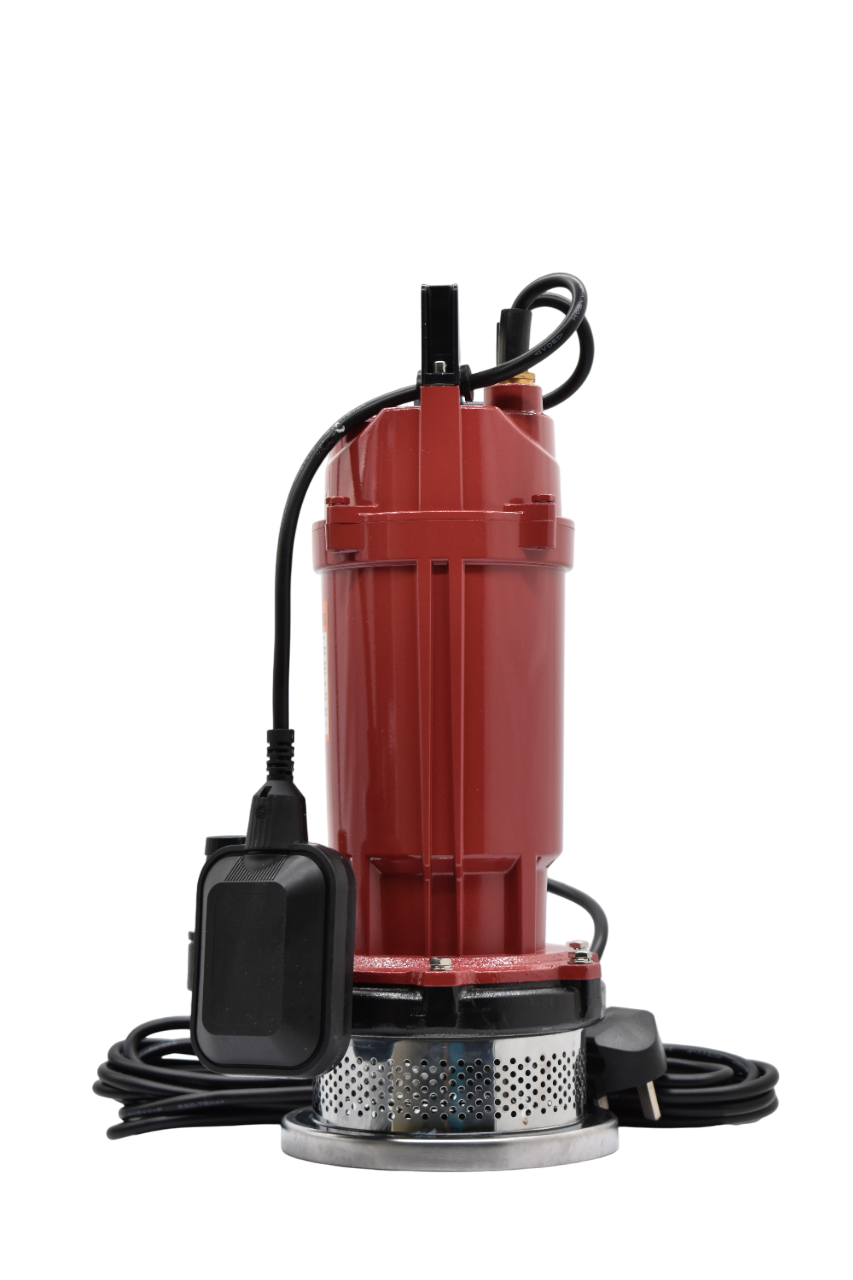

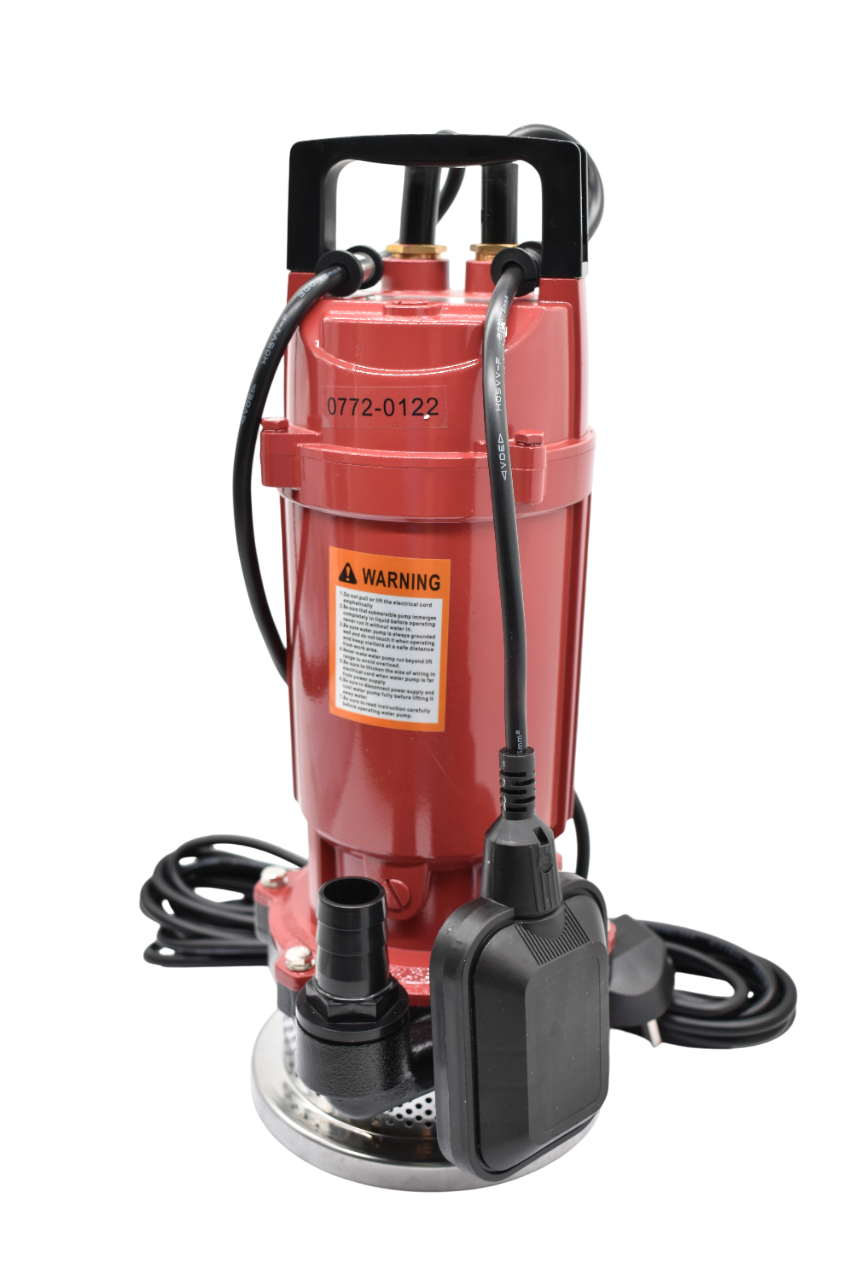

QDX 1.5-32-0.75A
Submersible pump
Submersible Pump
About this item
WATER PUMP
- Special anti-rest treatment for cast iron pump body and support
- Maximum immersion depth: 5m
- Maximum liquid temperature: +40°C
- Maximum sand content is 0.1%-passage of suspended solids up to 0.2mm
- Liquid Ph value: 6.5 - 8
- Product code: QDX 1.5-32-0.75A
- HP: 1
- VOLTAGE: 220-240
- Phase: single phase motor
- FREQUENCY (Hz): 60
- PIPE SIZE: 1”
- MAX HEAD (Hmax): 32 m
Availability : 10+ in stock
Warranty : 24 Months
Free 2.0 year warranty - Terms & Conditions
Add more:
Price:
QDX (1 HP), 220-240V, 60Hz, 1″
Application
KANZO QDX 1.5-32-0.75A Submersible Pump (1 HP) can be used in urban wells water pumping, farming irrigation and drainage, garden watering and family households, construction, aquaculture and fishponds etc.
Pump Features
- Special anti-rest treatment for cast iron pump body and support
- Maximum immersion depth: 5m
- Maximum liquid temperature: +40°C
- Maximum sand content is 0.1%-passage of suspended solids up to 0.2mm
- Liquid Ph value: 6.5 - 8
Motor Features
- Copper winding
- Built-in thermal protecter
- Stainless steel welded shaft
- Insulation class: F
- Protection class: IP68
Operating Conditions
- Continuous duty
Advantages
- High pressure
- Compacted design, easy installation and maintenance
- Low noise
Power features
- Phase: Single Phase
- Thermal overload protecter: yes
- Power Supply: 220-240
- Power Rating:
- Motor power: 1HP
Warranty
- Warranty: 2 years
- Service Type: NILL
- Covered in warranty: Yes
- Not covered in warranty: NILL
Dimensions
- Weight:
- Net Quantity: 1 Count
- Included Components:
General
- Brand: KANZO Pumps
- Model number:
- Type: Submersible
- Usage: Domestic
- Color: Red
- Material:
- Total head: 32 m
- Outlet size: 1"
- Country of origin: Made in China (ITALIAN STANDARD)
Additional Features
- Corrosion Resistant: yes
- Other features: NILL
Technical data
Dimensions
