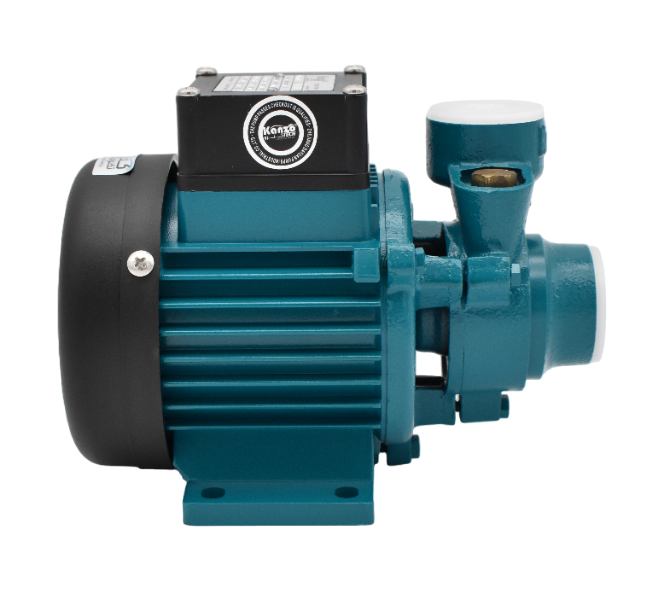

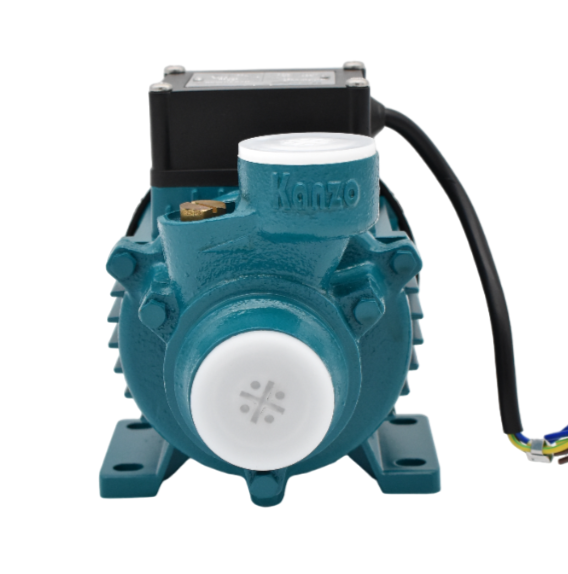

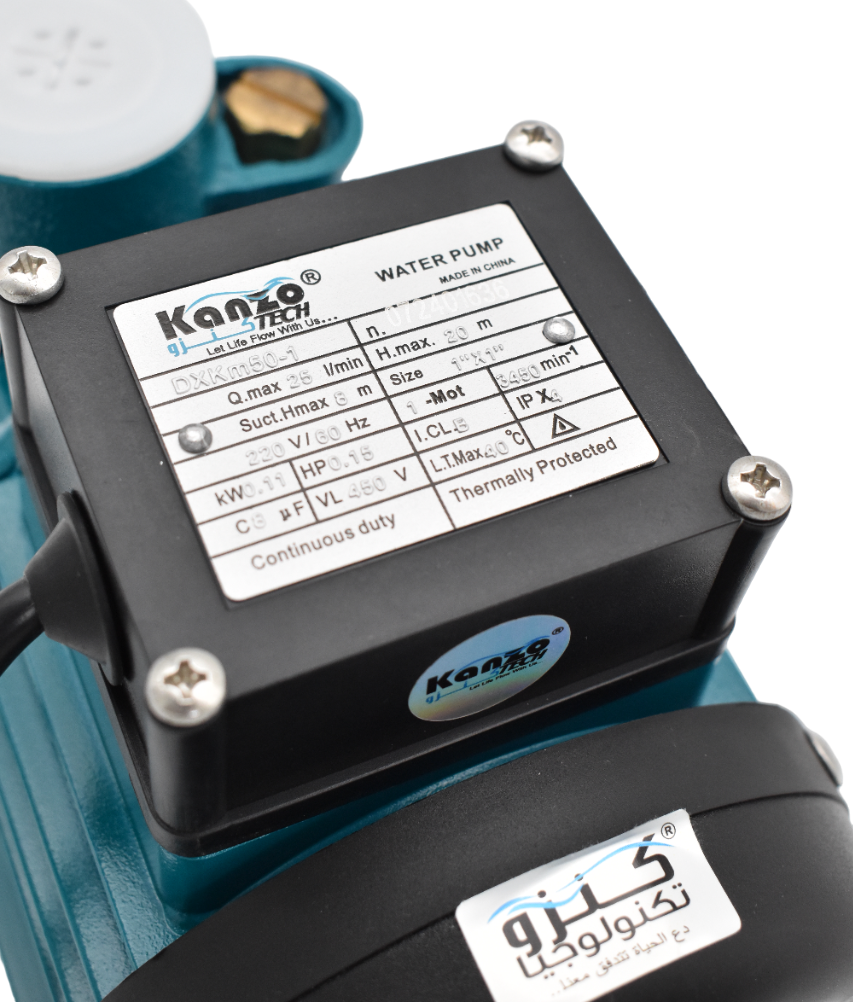

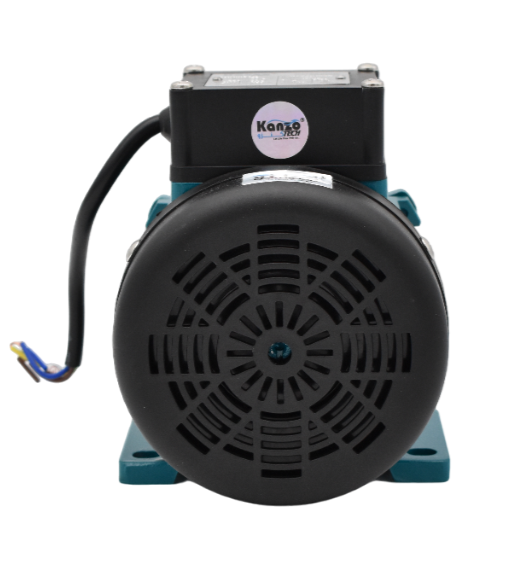

DXkm50
Peripheral pump
Peripheral Water Pumps
About this item
WATER PUMP
- Special anti-rest treatment for cast iron pump body and support
- Anti-block system for impeller
- Brass impeller
- AISI 304 shaft
- Maximum liquid temperature: +60°C
- Maximum suction: 8 m
- Product code: DXkm50
- HP: 0.15
- VOLTAGE: 220 V
- Phase: single phase motor
- FREQUENCY (Hz): 60
- PIPE SIZE: 1” × 1”
- MAX HEAD (Hmax): 20 m
- MAX.DELIVERY (Qmax) : 25 l/min
Availability : 10+ in stock
Warranty : 24 Months
Free 2.0 year warranty - Terms & Conditions
Add more:
Price:
DXkm50 (0.15 HP), 220V, 60Hz, 1″×1″
Application
KANZO DXkm50 (0.15 HP) can transfer clean water or other liquids like water in physical and chemical properties. It's suitable for small living water supply, automatic water sprinkle system, small air conditioner system or supporting equipment etc.
Pump Features
- Special anti-rest treatment for cast iron pump body and support
- Anti-block system for impeller
- Brass impeller
- AISI 304 shaft
- Maximum liquid temperature: +60°C
- Maximum suction: 8 m
Motor Features
- Single phase
- Heavy duty continuous work
- Low noise & Long-life bearing
- Motor with copper winding
- Cold-rolled laminations
- Built-in thermal protector for single phase motor
- Insulation class: F
- Protection class: IP×4
- Maximum ambient temperature: +50°C
- Cooling: External ventilation
Operating Conditions
- Continuous duty
- pH: 6.5 to 8.5
Advantages
- Easy installation& maintenance
- Small size, high pressure
Identification codes
General
- Brand: KANZO Pumps
- Model number:
- Type: Peripheral
- Usage: Domestic
- Color: Blue & Green
- Material:
- Flow rate: 5 l/min
- Total head: 20 m
- Inlet size: 1"
- Outlet size: 1"
- Country of origin: Made in China (ITALIAN STANDARD)
Power features
- Phase: Single Phase Motor
- Thermal overload protector: yes
- Power Supply: 220
- Power Rating:
- Motor power: 0.15 HP
Additional Features
- Corrosion Resistant: yes
- Other features: NILL
Dimensions
- Weight:
- Net Quantity: 1 Count
- Included Components:
Warranty
- Warranty: 2 years
- Service Type:
- Covered in warranty:
- Not covered in warranty:
Technical data
Dimensions
Hydraulic performance Curves
Materials Table
Packaging Information
