XMCmk75
Centrifugal pumps

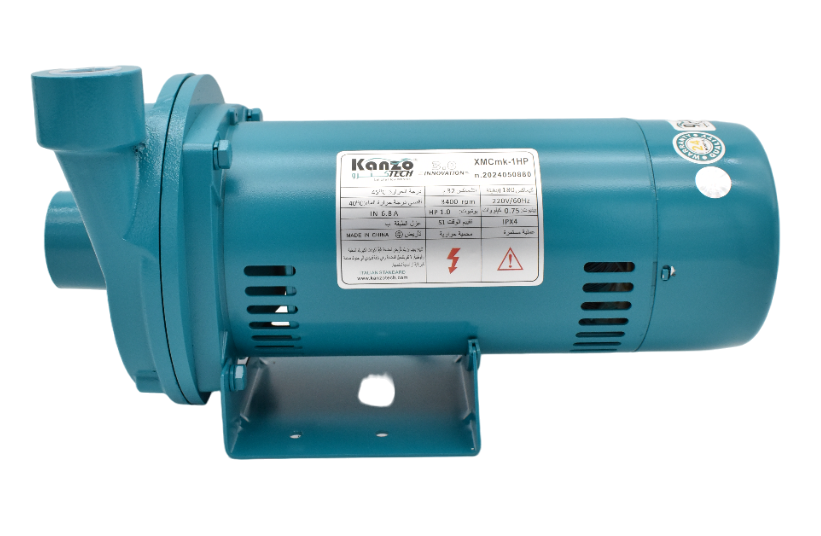

Centrifugal Pump
About this item
WATER PUMP
- Cast iron pump body and support under special anti-rust treatment
- Impeller: Brass
- AISI 304 shaft
- Maximum liquid temperature: +60°C
- Maximum suction: +8m
- Product code: XMCmk75
- HP: 1
- VOLTAGE: 110/220
- Phase:
- FREQUENCY (Hz): 60
- PIPE SIZE: 1.25” × 1”
- MAX.HEAD (Hmax) : 32 m
- MAX.DELIVERY (Qmax) : 180 l/min
Availability : 10+ in stock
Warranty : 24 Months
Free 2.0 year warranty - Terms & Conditions
Add more:
Price:
XMcmk75 (1 HP), 110/220V, 60Hz, 1.25″×1″
Application
KANZO XMCmk75 Centrifugal Pump (1 HP) can transfer clean water or other liquids like water in physical and chemical properties. It’s suitable for industrial use and urban water supply, pressure boosting for high buildings and firefighting, garden irrigation, long-distance water transfer, heating ventilation and air conditioning, circulation and pressure boosting for hot and cold water or supporting equipment etc.
Pump Features
- Cast iron pump body and support under special anti-rust treatment
- Impeller: Brass
- AISI 304 shaft
- Mechanical seal: carbon/ceramic/stainless steel
- Front bracket: cast iron
- Maximum liquid temperature: +60°C
- Maximum suction: 8m
Motor Features
- Single phase
- Heavy duty continuous work
- Motor housing: aluminum
- Low noise& Long-life bearing
- Built-in thermal protecter for single phase motor
- Insulation class: B/F
- Protection class: IP22/ IP×4
- Maximum ambient temperature: +40°C
- Cooling: External ventilation
Operating Conditions
- Continuous duty
- pH: 6.5 to 8.5
Advantages
- High efficiency
- Built-in cooling fan, while cooling more quieter
- Compact structure
- Motor in NEMA standard
- Motor bracket with feet supporting
Identification codes
General
- Brand: KANZO Pumps
- Model number:
- Type: Centrifugal
- Usage: Domestic
- Color: Blue & Green
- Material:
- MAX.DELIVERY (Qmax) : 180 l/min
- Total head: 32 m
- Inlet size: 1.25"
- Outlet size: 1"
- Country of origin: Made in China (ITALIAN STANDARD)
Power features
- Phase:
- Thermal overload protector: yes
- Power Supply: 110/220
- Power Rating:
- Motor power: 1 HP
Additional Features
- Corrosion Resistant: yes
- Other features: NILL
Dimensions
- Weight:
- Net Quantity: 1 Count
- Included Components:
Warranty
- Warranty: 2 years
- Service Type:
- Covered in warranty:
- Not covered in warranty:
Technical data
Dimensions
Hydraulic performance Curves
Materials Table
Packaging Information
